Imagine your air conditioner or refrigerator working tirelessly to keep you cool, but without a tiny, yet critical component, it would all fall apart. Enter the Thermostatic Expansion Valve (TXV)—a small but mighty device that ensures your cooling systems run efficiently and reliably. In this blog, we’ll dive deep into what a TXV is, how it works, and why it’s indispensable in modern HVAC systems.

Introduction: What is a Thermostatic Expansion Valve?

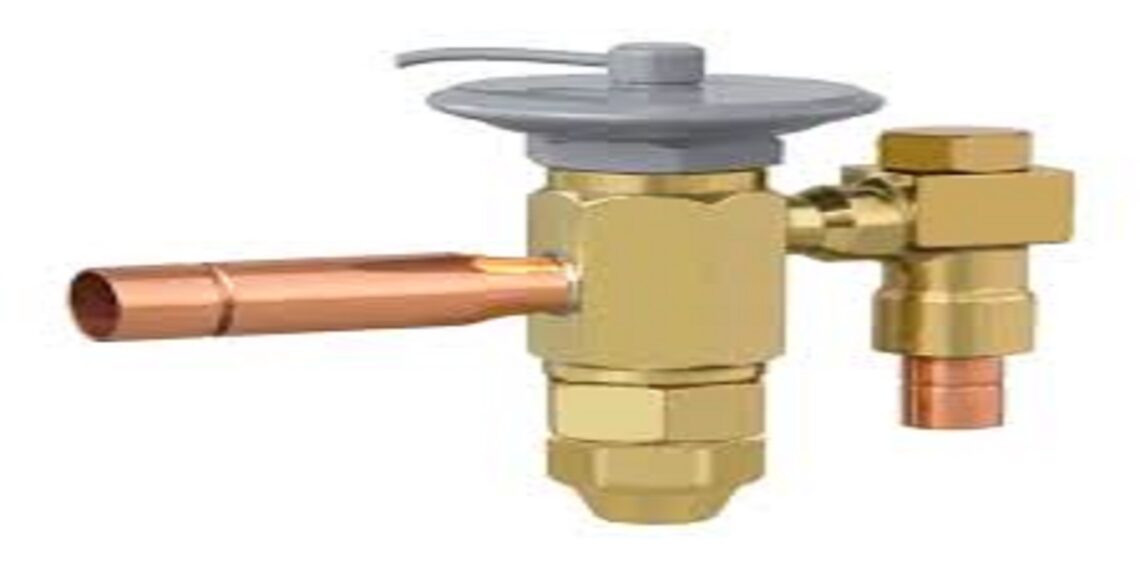

A Thermostatic Expansion Valve (TXV) is a precision device used in refrigeration and air conditioning systems to regulate the flow of refrigerant into the evaporator. By controlling the amount of refrigerant based on the cooling demand, the TXV ensures optimal system performance, energy efficiency, and longevity. Think of it as the “traffic controller” of your HVAC system, managing the flow of refrigerant to maintain the perfect balance.

How Does a Thermostatic Expansion Valve Work?

The TXV operates on a simple yet ingenious principle: it adjusts the refrigerant flow based on the temperature and pressure at the evaporator outlet. Here’s a step-by-step breakdown of its operation:

1. Sensing Bulb: The TXV has a sensing bulb filled with a refrigerant charge, attached to the evaporator outlet. This bulb detects the temperature of the refrigerant leaving the evaporator.

2. Diaphragm and Spring: The sensing bulb’s pressure acts on a diaphragm, which works against a spring to control the valve’s opening.

3. Refrigerant Flow Regulation:

If the evaporator is too warm, the sensing bulb detects this and increases the refrigerant flow.

If the evaporator is too cold, the flow is reduced to prevent overcooling.

This dynamic adjustment ensures the system operates at peak efficiency, regardless of external conditions.

Types of Thermostatic Expansion Valves

Not all TXVs are created equal. Here are the main types you’ll encounter:

1. Internally Equalized TXV:
   • Uses pressure from the evaporator inlet to balance the valve.
   • Ideal for smaller systems with low pressure drops.
2. Externally Equalized TXV:
   • Uses pressure from the evaporator outlet for more accurate control.
   • Suitable for larger systems or those with significant pressure drops.
3. Balanced Port TXV:
   • Designed to handle high-pressure differentials without compromising performance.
   • Commonly used in commercial and industrial applications.

Why is the TXV So Important?

The TXV plays a critical role in HVAC systems, offering several key benefits:

1. Energy Efficiency: By precisely controlling refrigerant flow, the TXV minimizes energy waste and reduces operating costs.
2. System Protection: It prevents issues like refrigerant flooding or starvation, which can damage compressors and other components.
3. Consistent Performance: The TXV ensures stable cooling output, even under varying load conditions.
4. Environmental Benefits: Efficient refrigerant use reduces the system’s carbon footprint.

Common Problems with Thermostatic Expansion Valves

Like any mechanical component, TXVs can experience issues. Here are some common problems and their solutions:

1. Clogging: Dirt or debris can block the valve, restricting refrigerant flow. Regular maintenance and filter changes can prevent this.
2. Wear and Tear: Over time, the diaphragm or spring may wear out, leading to improper regulation. Replacement is often the best solution.
3. Improper Sizing: A TXV that’s too large or too small for the system can cause inefficiencies. Always ensure the valve matches the system’s specifications.
4. Faulty Sensing Bulb: If the sensing bulb loses its charge or is improperly installed, the TXV won’t function correctly. Recharging or repositioning the bulb can resolve this.

Maintenance Tips for TXVs

To keep your TXV in top shape, follow these maintenance tips:

• Regular Inspections: Check for signs of wear, leaks, or blockages.
• Clean Filters: Ensure air filters are clean to prevent debris from entering the system.
• Professional Servicing: Have a licensed technician inspect and service the TXV annually.
• Monitor Performance: Watch for symptoms like inconsistent cooling or frost buildup, which may indicate TXV issues.

Innovations in TXV Technology

The humble TXV has evolved over the years, with modern advancements enhancing its performance:

• Electronic Expansion Valves (EEVs): These use sensors and microprocessors for even more precise control.
• Variable-Speed Compressors: Paired with TXVs, these systems adapt to cooling demands in real-time, boosting efficiency.
• Eco-Friendly Refrigerants: New TXVs are designed to work with low-GWP (Global Warming Potential) refrigerants, supporting sustainability goals.

Conclusion: The Heart of HVAC Efficiency

The Thermostatic Expansion Valve may be small, but its impact on HVAC systems is enormous. From ensuring energy efficiency to protecting your equipment, the TXV is a true unsung hero. Whether you’re a homeowner, technician, or HVAC enthusiast, understanding this vital component can help you appreciate the complexity and brilliance of modern cooling systems.

Call to Action:
Next time you enjoy a cool breeze from your AC or grab a cold drink from your fridge, take a moment to thank the TXV for its silent, tireless work. And if you’re experiencing HVAC issues, don’t overlook this critical component—consult a professional to ensure your system is running at its best!

Final Thought:
In the world of HVAC, it’s often the smallest parts that make the biggest difference. The Thermostatic Expansion Valve is a perfect example of how precision engineering can transform everyday comfort and efficiency.
